GIMBAL(Military-grade Four-sensor Gimbal)

Original price was: $2,680.00.Current price is: $2,299.00.

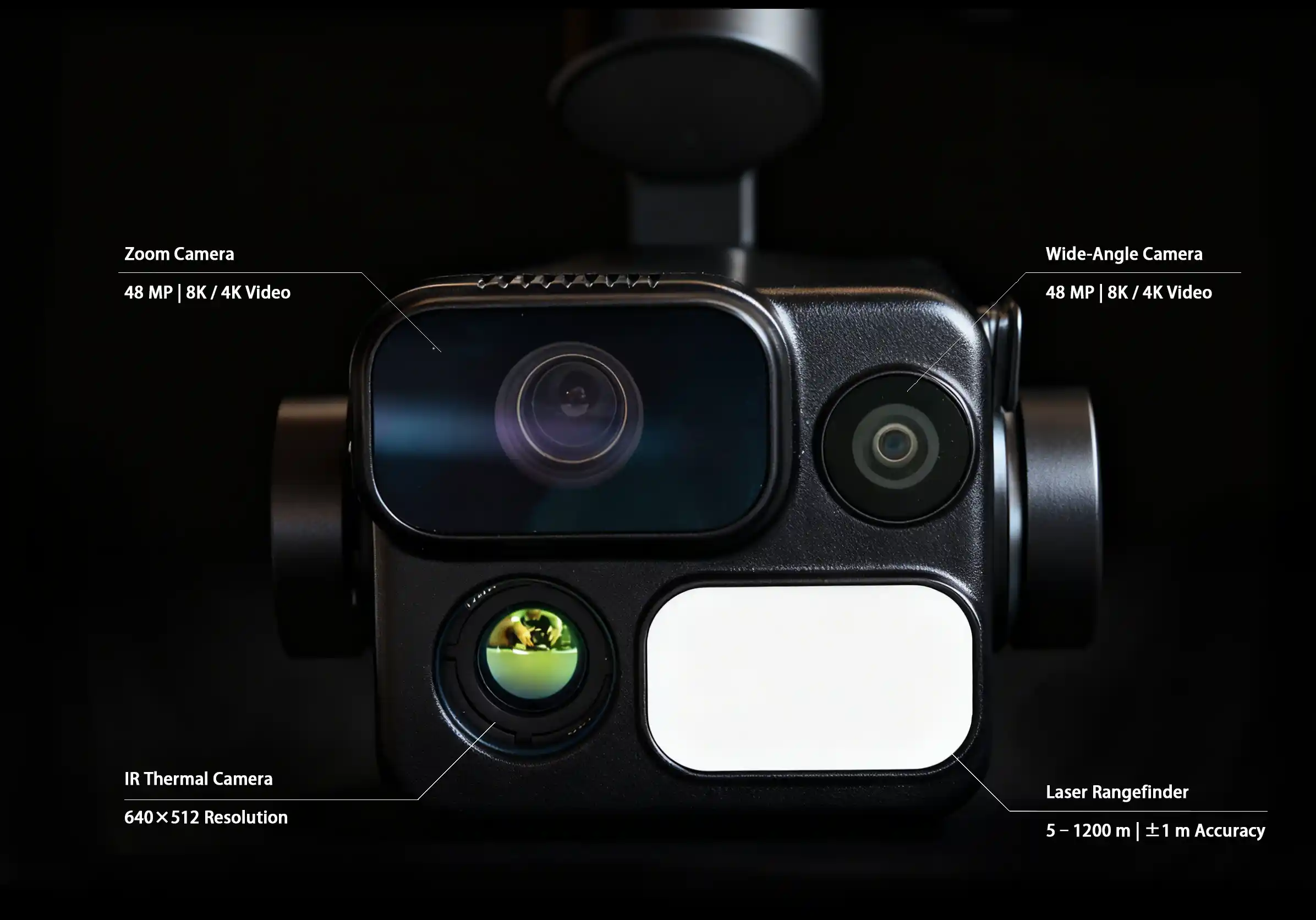

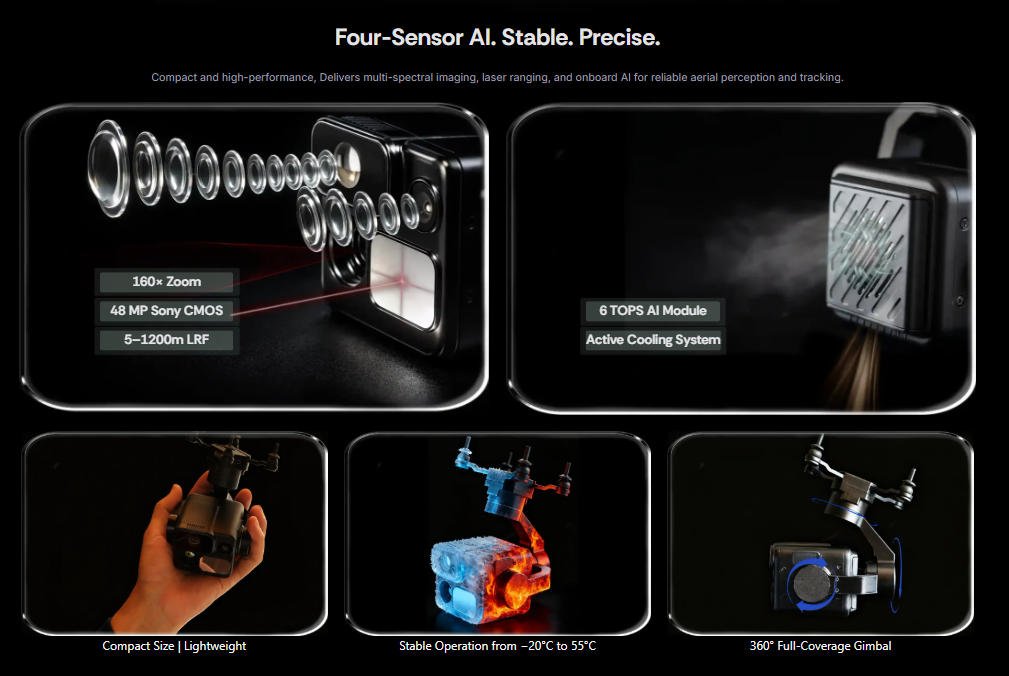

  • Four-Sensor Multi-Spectral Imaging System
    Integrates dual 48 MP Sony CMOS visible-light cameras (wide-angle + zoom), a 640×512 thermal imager, and a 1.2 km laser rangefinder, delivering precise visual, thermal, and distance data in a single compact payload.

  • 160× Advanced Zoom & Long-Range Detection
    Features 22× lossless zoom with an 81–270 mm focal range and up to 160× digital zoom, enabling long-distance observation, identification, and tracking of targets in complex environments.

  • 6 TOPS Onboard AI Computing
    Built-in 6 TOPS AI module supports intelligent recognition, automatic target tracking, and fast target localization, significantly improving operational efficiency for inspection, security, and aerial surveillance missions.

  • High-Precision 360° Stabilized Gimbal
    Full-coverage gimbal with ±150° yaw, wide roll and pitch angles, and ±0.01° stabilization accuracy ensures smooth, stable imaging during dynamic flight and multi-angle observation.

  • Compact, Rugged & Mission-Ready Design

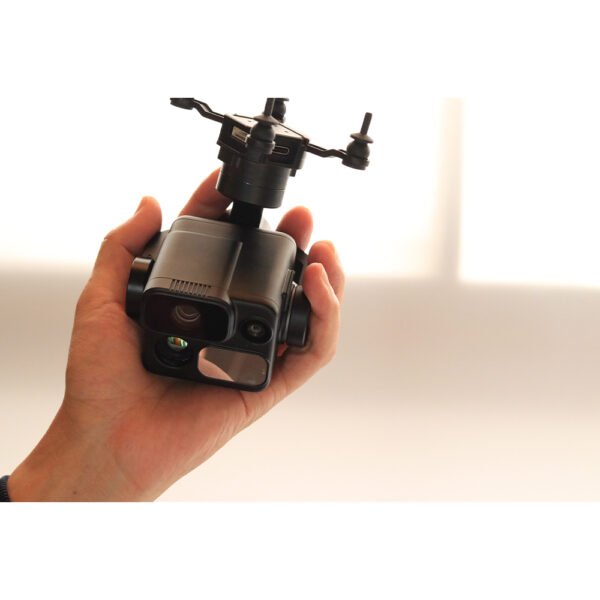

    Weighing only 300 g, with active cooling and IP44 protection, the INFI-4T-A operates reliably from −20°C to 55°C, making it suitable for all-weather, long-duration UAV deployments.

Category:

Four Sensors. 160× Lossless Zoom. 6 TOPS AI Power.

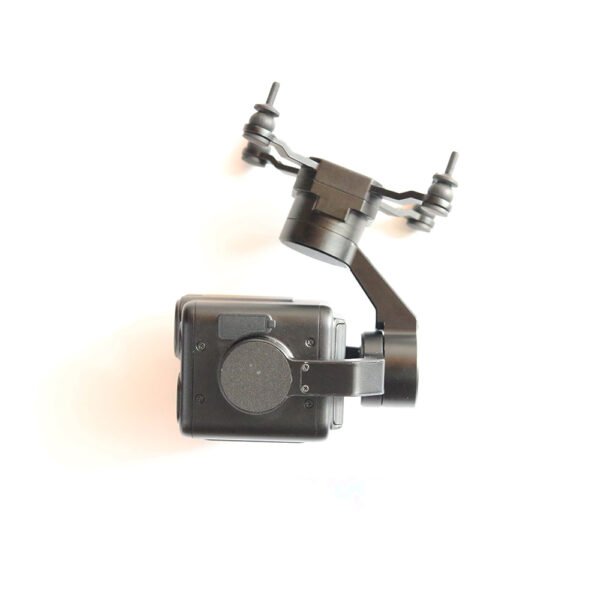

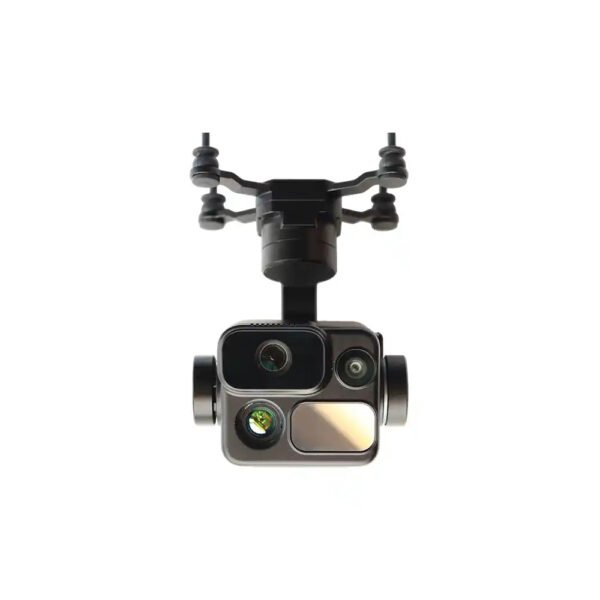

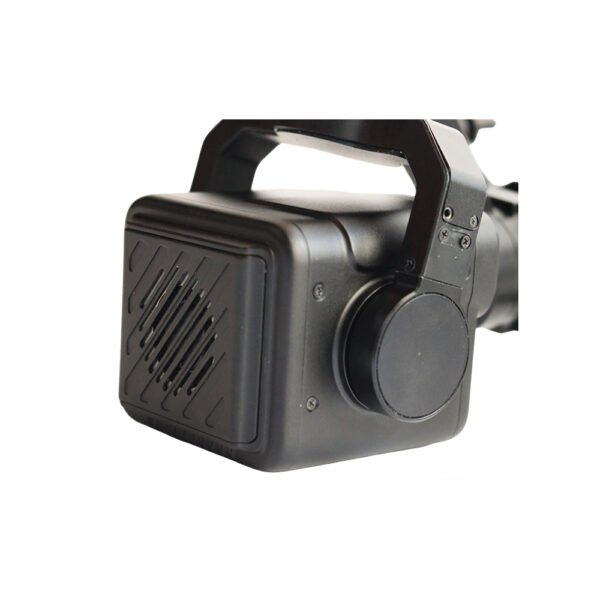

The INFI-4T-A is a compact four-sensor AI gimbal camera designed for drones of any size. It integrates dual 48 MP visible-light cameras (wide-angle and zoom), a 640×512 thermal imager, and a 1.2 km laser rangefinder, delivering stable, high-performance multi-spectral imaging. With 22× lossless zoom, flexible split-screen sensor fusion, and 6 TOPS onboard AI computing, it enables fast target localization, thermal detection, intelligent recognition, and real-time tracking, significantly improving operational efficiency across inspection, security, and aerial surveillance missions.

Product Parameters Visible Light Camera Sensor Wide-angle Camera Focal Length / Zoom Camera Focal Length 1/2″ SONY CMOS, Effective Pixels: 48MP 24mm 11× Hybrid Zoom, 22× Lossless Zoom 81–270mm

Infrared Camera Sensor / Focal Length 640×512 13mm
Photo Resolution 1200 / 2000 / 2400 / 4800
Video Resolution 4000×3000 @ 30fps
Laser Rangefinder 1200m
Built-in Computing Power 6 TOPS
Tracking Function OK
Local Storage 256GB
Gimbal Specifications
Operating Voltage 12V–18V
Weight 300g
Operating Temperature -20 ~ 55℃
Control Interface UART / UDP / S.BUS
Protection Rating IP44

Yaw Angle Range: ±150°

Gimbal Control

Roll Angle Range: -85° ~ +85° Pitch Angle Range: -135° ~ +45° Stabilization Accuracy: ±0.01°
